# Gas Venturi (Calc dens, Calc Std dens, Calc CV)

## Options

### Discharge coefficient

- User entered
- Classical Venturi with ‘as cast’ convergent section.
- Classical Venturi with rough-welded convergent section.
- Classical Venturi with a machined convergent section.
- Venturi nozzle

Select the way to input the discharge coefficient as per ISO 5167.

### Temperature

- Upstream
- Downstream

Select if the temperature is measured downstream or upstream of the Venturi.

### Pipe diameter uncertainty

- User entered
- Standard default

Enter whether the diameter of the pipe is user entered or the standard default.

### Venturi diameter uncertainty

- User entered
- Standard default

Enter whether the diameter of the Venturi is user entered or the standard default.

### Uncertainty in wet Gas Correction

- User entered
- Calculated

Select whether the uncertainty in the wet gas correction is entered manually or calculated.

### Methanol Injection

- Yes
- No

Select whether there is Methanol injection in the stream.

### Standard

- 1991
- 2003

Select the year of the standard to be used in the calculations.

## Pipe data

**Pipe** **diameter** (**D**) – Enter the diameter of the pipe.

**Pipe** **temperature** **expansion** **coefficient** – Enter the temperature expansion coefficient.

*Note: the coefficient of expansion represents the change in size with respect to temperature.*

**Pipe** **calibration** **temperature** – Enter the temperature at which the pipe was calibrated.

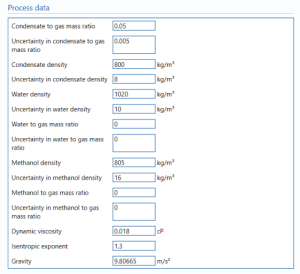

### Process data

**Condensate** **to** **gas** **mass** **ratio** – the ratio of condensate mass to gas mass.

**Uncertainty** **in** **Condensate** **to** **gas** **mass** **ratio** – the uncertainty in the ratio of condensate mass to gas mass.

**Condensate** **density** – the density of the condensate in the stream.

**Uncertainty** **in** **Condensate** **density** – uncertainty in the density of the condensate in the stream.

**water** **density** – the density of water. (Defaulted at 1020 kg/m³)

**uncertainty** **in** **water** **density** – Uncertainty in the density of water.

**water** **to** **gas** **mass** **ratio** – the ratio of water mass to the mass of gas.

**uncertainty** **in** **water** **to** **gas** **mass** **ratio** – uncertainty in the ratio of water mass to the mass of gas.

**Methanol** **density** – the density of methanol. (Defaulted at 805 kg/m³)

**Uncertainty** **in** **Methanol** **density** – uncertainty in the density of methanol.

**Methanol** **to** **gas** **mass** **ratio** – the ratio of the mass of Methanol to the mass of gas.

**Uncertainty** **in** **Methanol** **to** **gas** **mass** **ratio** – uncertainty in the ratio of the mass of Methanol to the mass of gas.

**Dynamic** **viscosity** – the dynamic viscosity of the flow in the stream.

*Note: Dynamic viscosity is the measure of the resistance to internal force of the fluid.*

**isentropic** **exponent** – the isentropic exponent of gas.

*Note: isentropic exponent is the ratio of the specific heat at constant pressure to specific heat at constant volume.*

**Gravity** – the acceleration that will be attained if allowed to fall freely.(Defaulted at 9.80665 m/s²)

### Venturi data

**Venturi** **throat** **diameter** (**d**) – Enter the throat diameter for the Venturi.

**Venturi** **thermal** **expansion** **coefficient** – the thermal expansion coefficient of the Venturi.

*Note: thermal expansion coefficient is the change in size per unit change in temperature.*

**Venturi** **calibration** **temperature** – the temperature at which the Venturi is calibrated.

### Uncertainty parameters

**Uncertainty** **in** **wet** **gas** **correction** – uncertainty in the correction factor of the wet gas in the stream.

**Drift** – Additional uncertainty allowance due to meter drift from factors such as time, ambient temperature and line voltage. Normally left at zero, unless evidence is present to suggest a higher value.

*Note: Drift is rarely apparent but needs to be continuously monitored through inspection, prevention and maintenance.*

**Computation** – Uncertainty due to computational errors in flow computer.

## Additional discharge coefficient uncertainty

**straight** **lengths** – enter the percentage uncertainty due to straight lengths in pipe.

**Pipe** **circularity** – enter the percentage uncertainty due to circularity of the pipe.

**Pipe**/**orifice** **alignment** – enter the percentage uncertainty due to the alignment of the pipe and the orifice.

## Calculation parameters

- Correction factor
- Beta ratio
- Discharge coefficient
- expansibility factor

The parameters that are inputted in the calculation as per values entered and options selected.

## Calculations

The uncertainty for the uncorrected gas mass flow rate, corrected gas mass flow rate, gas standard volume flow rate and energy flow rate are calculated.

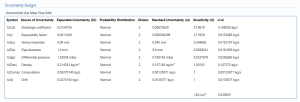

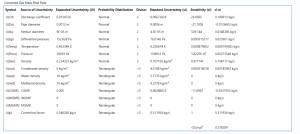

### Uncertainty Budget

The uncertainty calculation is detailed in the uncertainty budget tables for uncorrected gas mass flow rate, corrected gas mass flow rate, gas standard volume flow rate and energy flow rate giving a break down of how the overall uncertainty is calculated for that parameter.

Uncertainties associated with these values are taken in as the Expanded Uncertainties. The Standard Uncertainty is calculated from dividing the Expanded Uncertainty by the coverage factor which is determined by the probability distribution that best suits that uncertainty component.

The Standard Uncertainty is then multiplied by the sensitivity value then squared. This is done for each parameter that contributes to the overall uncertainty in that parameter. The Standard Uncertainty in the parameter is the square root of the sum of each component variance as shown in the following equation:

### Calculated Uncertainty

The Expanded Uncertainty is the Standard Uncertainty multiplied by the coverage factor (k). The coverage factor is defaulted to k = 2 (equivalent to a confidence level of approximately 95%). The Relative Uncertainty is the Expanded Uncertainty divided uncorrected gas mass flow rate, corrected gas mass flow rate, gas standard volume flow rate or energy flow rate depending on the parameter.
